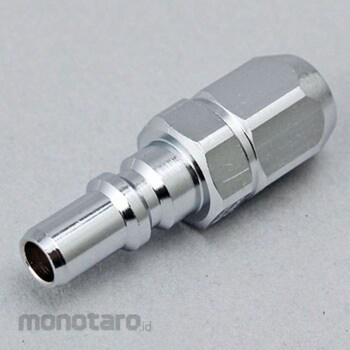

NITTO KOHKI Small Coupler Plug (for Hose Installation)
#Grup produk P102830156
Spesifikasi
| Valve Structure | No valve |
|---|---|
| Installation Shape | For hose mounting |
| Connection Method | One touch type |
| Fluid | Air, water |
| Socket or Plug | plug |
| Material (Seal) | Nitrile rubber |
| Pressure resistance | 1.1MPa [11kgf/cm2) |
| Dimension C (mm) | 15.2 |
| Dimension H1 (mm) | Hex 10 |
| Dimension H2 (mm) | Hex 10 |
| Dimension Lp (mm) | 31 |
| Maximum Working Pressure (MPa) | 0.7 |
| Operating Temperature Range (°С) | -20 to +80 |
| Body Material | Brass (chrome plating) |
| Dimension D (mm) | 11 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Light weight, miniaturization.Compact type with sleeve outer shape 23 mm. One touch connection.UseableFor low pressure, light weight, small size, pneumatic pressure, for physics and chemistry equipment pipingUlasan Produk
