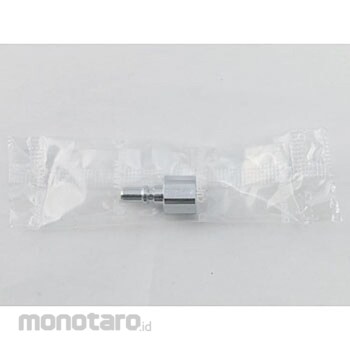

NITTO KOHKI Small Coupler Plug (for Male Thread Mounting)
#Grup produk P102830138
Spesifikasi
| Valve Structure | No valve |
|---|---|
| Connection Method | One touch type |
| Installation Shape | For male thread mounting |
| Opponent Mounting Size | R1/8 |
| Fluid | Air, water |
| Material (Seal) | Nitrile rubber |
| Pressure resistance | 1.1MPa [11kgf/cm2) |
| Socket or Plug | plug |
| Dimension Bp (mm) | 4 |
| Dimension C (mm) | 15.2 |
| Dimension Hp (mm) | Hex 13 |
| Dimension Lp (mm) | 27 |
| Dimension T (inch) | Rc 1/8\" |
| Maximum Working Pressure (MPa) | 0.7 |
| Operating Temperature Range (°С) | -20 to +80 |
| Body Material | Brass (chrome plating) |
| Dimension D (mm) | 14 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Light weight, miniaturization.Compact type with sleeve outer shape 23 mm. One touch connection.UseableFor low pressure, light weight, small size, pneumatic pressure, for physics and chemistry equipment pipingUlasan Produk
