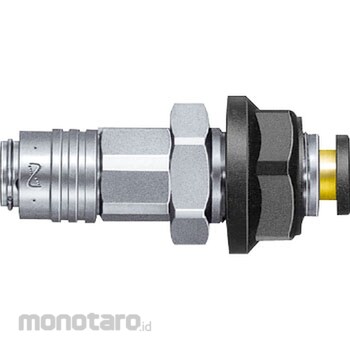

NITTO KOHKI Micro Coupler Socket (for Panel Mounting With Tube Fitter)
#Grup produk P102830022
Spesifikasi
| Fluid | air |
|---|---|
| Pressure resistance | 1.5MPa [15kgf/cm2) |
| Socket or Plug | socket |
| Connection Method | One touch type |
| Installation Shape | With tube fitter |
| Material (Seal) | Nitrile rubber |
| Valve Structure | With valve |
| Dimension T (inch) | 3.5 or less |
| Maximum Working Pressure (MPa) | 1 |
| Operating Temperature Range (°С) | -20 to +60 |
| Body Material | Brass (plating treatment) |
| Dimension D (mm) | 9.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Small size sleeve outer diameter phi 9.5 mm with valves on the socket. Just push in one-touch connection.Space saving design suitable for piping work in limited space.The body is made of brass made of plated and excellent in corrosion resistancUlasan Produk
