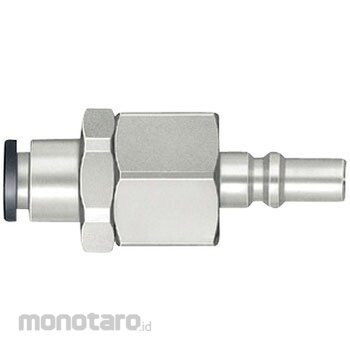

NITTO KOHKI Small Coupler Plug (With Tube Fitter)
#Grup produk P102829983
Spesifikasi
| Fluid | air |
|---|---|
| Material (Seal) | Nitrile rubber |
| Pressure resistance | 1.1MPa [11kgf/cm2) |
| Socket or Plug | plug |
| Connection Method | One touch type |
| Valve Structure | No valve |
| Installation Shape | With tube fitter |
| Body Material | Brass (chrome plating, nickel plating) |
| Dimension Bp (mm) | 4 |
| Dimension C (mm) | 15.2 |
| Dimension Hp (mm) | Hex 16 |
| Maximum Working Pressure (MPa) | 0.7 |
| Operating Temperature Range (°С) | -5 to +60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Light weight, miniaturization.Compact type sleeve outer shape 16 mm.One touch connection.UseableFor low pressure, light weight, small size, pneumatic pressure, for physics and chemistry equipment pipingUlasan Produk
