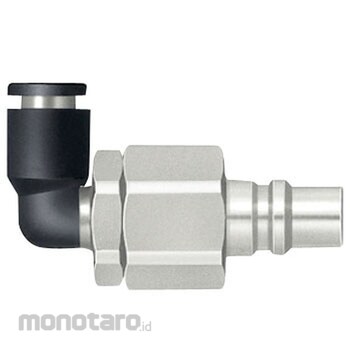

NITTO KOHKI Super Coupler Plug (With Tube Fitter)
#Grup produk P102829947
Spesifikasi
| Pressure resistance | 1.5MPa [15kgf/cm2) |
|---|---|
| Connection Method | One touch type |
| Material (Seal) | Nitrile rubber |
| Valve Structure | No valve |
| Socket or Plug | plug |
| Installation Shape | With tube fitter |
| Fluid | air |
| Body Material | Steel (chrome plating), aluminum, brass (nickel plating) |
| Dimension Bp (mm) | 6 |
| Dimension C (mm) | 15 |
| Dimension D (mm) | 18.5 |
| Dimension Hp (mm) | Hex 17 |
| Maximum Working Pressure (MPa) | 1 |
| Operating Temperature Range (°С) | -5 to +60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Lightweight design. Excellent operability with one touch connection.UseableFor low pressure, light weight, for small air pipingUlasan Produk
