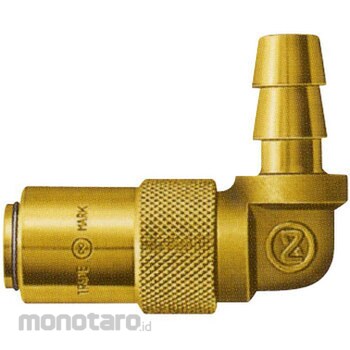

NITTO KOHKI Mold Coupler Socket (for Hose Installation)
#Grup produk P102829840
Spesifikasi
| Installation Shape | For hose mounting |
|---|---|
| Valve Structure | With valve |
| Material (Seal) | Nitrile rubber |
| Fluid | Water, hot oil |
| Pressure resistance | 1.5MPa [15kgf/cm2) |
| Dimension A (mm) | 29 |
| Dimension C (mm) | 21 |
| Dimension Ls (mm) | 52 |
| Dimension N (mm) | 16.8 |
| Maximum Working Pressure (MPa) | 1 |
| Operating Temperature Range (°С) | -20 to +80 |
| Body Material | brass |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Space saving design that can also be used for molds with narrow water spacing. Socket is a long sleeve system. It can be detached with the plug embedded in the mold.UseableFor low pressure, general purpose type, mold cooling water inletUlasan Produk
