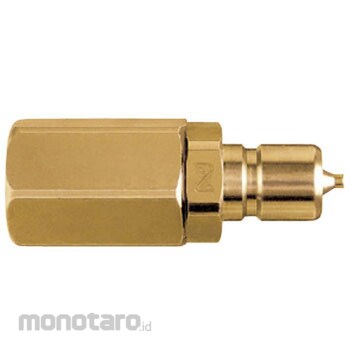

NITTO KOHKI Compact Coupler Plug (for Male Thread Mounting)
#Grup produk P102829804
Spesifikasi
| Installation Shape | For male thread mounting |
|---|---|
| Fluid | Air, water |
| Compatible Tube Materials | Polyamide, polyolefin, fluorine resin |
| Opponent Mounting Size | R1/8 |
| Material (Seal) | Fluoro rubber |
| Socket or Plug | plug |
| Pressure resistance | 1.5MPa [15kgf/cm2) |
| Valve Structure | With valve |
| Dimension Hp (mm) | Hex 14 |
| Dimension Lp (mm) | 36 |
| Dimension T (inch) | Rc 1/8\" |
| Maximum Working Pressure (MPa) | 1 |
| Dimension D (mm) | 15.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Built-in automatic opening / closing valve.Compact size with a maximum diameter of 17.5 mmUseableLow pressure, compact, low pressure general purpose typeUlasan Produk
