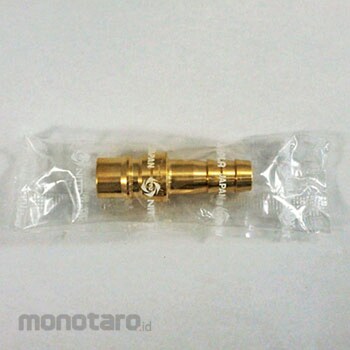

NITTO KOHKI Hi Coupler Plug Large Diameter (for Hose Mounting) Made Of Brass
#Grup produk P102829460
Spesifikasi
| Fluid | water |
|---|---|
| Pressure resistance | 1.5MPa [15kgf/cm2) |
| Socket or Plug | plug |
| Material (Seal) | Nitrile rubber |
| Installation Shape | hose nipple |
| Valve Structure | No valve |
| Dimension BD (mm) | 13 |
| Dimension C (mm) | 23 |
| Maximum Working Pressure (MPa) | 1 |
| Operating Temperature Range (°С) | -20 to +80 |
| Body Material | brass |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
It is a coupler excellent in versatility from air piping in the factory to hose connection of pneumatic tool. Steel for air, brass for water, stainless steel is suitable. However, please note that plug side fluid flows out when separating. ImprUlasan Produk
