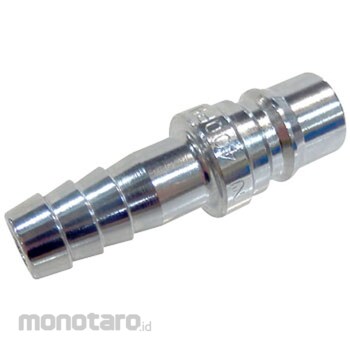

NITTO KOHKI High Coupler (Large Diameter) (for Mounting Hose) Plug
#Grup produk P102829415
Spesifikasi
| Fluid | air |
|---|---|
| Socket or Plug | plug |
| Installation Shape | hose nipple |
| Pressure resistance | 2.0MPa [20kgf/cm2) |
| Valve Structure | No valve |
| Material (Seal) | Nitrile rubber |
| Body Material | Steel (chrome plating) |
| Dimension BD (mm) | 13 |
| Dimension C (mm) | 23 |
| Maximum Working Pressure (MPa) | 1.5 |
| Operating Temperature Range (°С) | -20 to +80 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
It is a coupler excellent in versatility from air piping in the factory to hose connection of pneumatic tool. Steel for air, brass for water, stainless steel is suitable. However, please note that plug side fluid flows out when separating. ImprUlasan Produk
