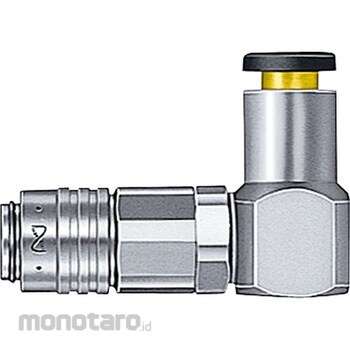

NITTO KOHKI Micro Coupler Socket (With Tube Fitter)
#Grup produk P102829336
Spesifikasi
| Material (Seal) | Nitrile rubber |
|---|---|
| Vacuum Utility Compatibility | Only when connected 53.0kPa [400mmHg) |
| Connection Method | One touch type |
| Socket or Plug | socket |
| Fluid | air |
| Pressure resistance | 1.5MPa [15kgf/cm2) |
| Valve Structure | With valve |
| Maximum Working Pressure (MPa) | 1 |
| Operating Temperature Range (°С) | -20 to +60 |
| Body Material | Brass (plating treatment) |
| Dimension D (mm) | 9.5 |
| Minimum Cross Section Area (mm²) | 4.9 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- When the socket and plug are separated, fluid flows out from the plug side piping. Please be careful when the fluid used is water.Feature
Small, lightweight type with sleeve outer shape 9.5 mm. .Just push in one-touch connection. . Tube fitter type further smooth piping is possible.UseableFor low pressure, for pneumatic control equipment pipingUlasan Produk
