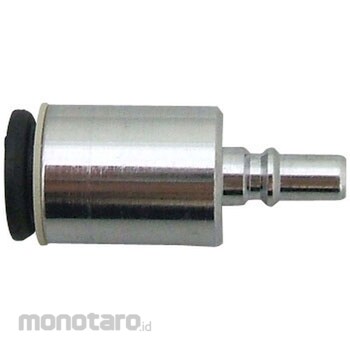

NITTO KOHKI Micro Coupler Tube Plug Fitted With Plug (for Tube Mounting)
#Grup produk P102829196
Spesifikasi
| Fluid | air |
|---|---|
| Socket or Plug | plug |
| Pressure resistance | 1.5MPa [15kgf/cm2) |
| Material (Seal) | Nitrile rubber |
| Installation Shape | For tube mounting (PC type) |
| Connection Method | One touch type |
| Vacuum Utility Compatibility | Only when connected 53.0kPa [400mmHg) |
| Shape | Straight type |
| Dimension Bp (mm) | 2.5 |
| Dimension C (mm) | 9.2 |
| Dimension Lp (mm) | 24.2 |
| Maximum Working Pressure (MPa) | 1 |
| Operating Temperature Range (°С) | -20 to +80 |
| Opponent Tube Size (mm) | Ø6 (outer diameter) |
| Size (mm) | 1/8 (minimum inner diameter 2.5 ) |
| Body Material | Brass (chrome plating) |
| Dimensions t (mm) | 10.3 |
| Minimum Cross Section Area (mm²) | 4.9 |
| TRUSCO Number | 397-6092 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Compact size with outer diameter phi 9.5 mm while providing a socket with a valve. . Just push in one-touch connection.Space saving design suitable for piping work in limited space. The body is made of brass made of chromium plating and has exUlasan Produk
