Spesifikasi
Pressure resistance | 1.5MPa [15kgf/cm2) |
---|---|
Material (Seal) | Nitrile rubber |
Connection Method | One touch type |
Fluid | Air, water |
Socket or Plug | socket |
Dimension A (mm) | 8 |
Dimension Bs (mm) | 2.5 |
Dimension D (mm) | 9.5 |
Dimension Hs (mm) | Hex 11 |
Dimension Ls (mm) | 36 |
Dimensions t (mm) | 4.8 |
Maximum Working Pressure (MPa) | 1 |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |

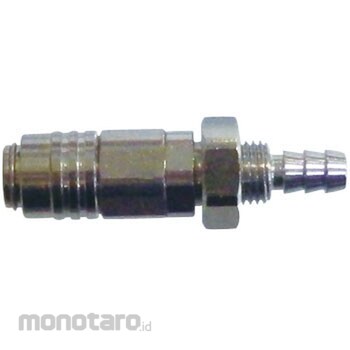

Informasi Produk
Warning
- When the socket and plug are separated, fluid flows out from the plug side piping. Please be careful when the fluid used is water.Feature
Small size sleeve outer diameter phi 9.5 mm with valves on the socket. Just push in one-touch connection.Space saving design suitable for piping work in limited space.The body is made of brass made of plated and excellent in corrosion resistancUlasan Produk
Tidak ada ulasan
