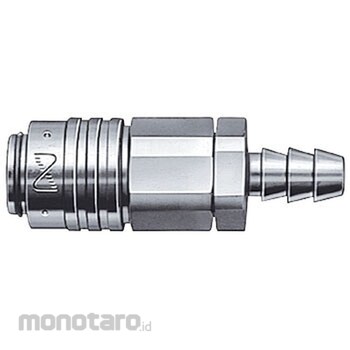

NITTO KOHKI Micro Coupler Socket (for Tube Mounting)
#Grup produk P102829105
Spesifikasi
| Pressure resistance | 1.5MPa [15kgf/cm2) |
|---|---|
| Installation Shape | For tube mounting |
| Valve Structure | With valve |
| Material (Seal) | Nitrile rubber |
| Connection Method | One touch type |
| Fluid | Air, water |
| Dimension A (mm) | 8 |
| Dimension D (mm) | 9.5 |
| Dimension Ls (mm) | 27.5 |
| Maximum Working Pressure (MPa) | 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- When the socket and plug are separated, fluid flows out from the plug side piping. Please be careful when the fluid used is water.Feature
Small, lightweight type with sleeve outer shape 9.5 mm. One touch connection.UseableFor low pressure, for pneumatic control equipment pipingUlasan Produk
