-A LAN cable tester that shows up to the disconnection point.
-Split pair inspection is possible.
-21 cables can be identified by using the terminator (9690-01 to 04) sold separately.
-Terminator (9690)-Mobile Case (for waist belts)

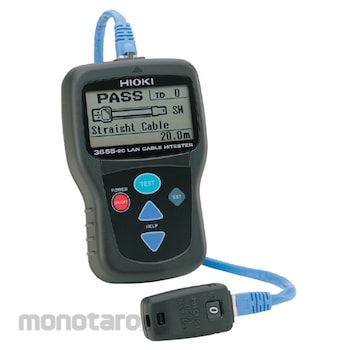

Hioki Lan Cable Tester
#Grup produk P102826056
Kondisi Barang:
Spesifikasi
| Cable Length Measurement | Measurable lengths: 2 m to 300 m (6.6 ft to 984 ft); Measurement accuracy: +/- 4% rdg. ± 1 m (3.3 ft); Display resolution: 0.1 m (0.3 ft) |
|---|---|
| Compatible | Connecter RJ-45 plugs |
| Dimensions (WxDxH) (mm) | 85x33x130 |
| Direction Measurement | Up to 21 cables can be identified using the supplied Terminator 9690 and optional Models 9690-01 to 9690-04 |
| Measurable Cable | Twisted-pair cable, characteristic impedance: 100 Ohm, shielded and unshielded, CAT 3, 4, 5, 5e and 6 |
| Power Supply | LR6 (AA) alkaline battery x2, 1.4 VA max., Continuous use : 50 hr (at measurement interval of 1 minute) |
