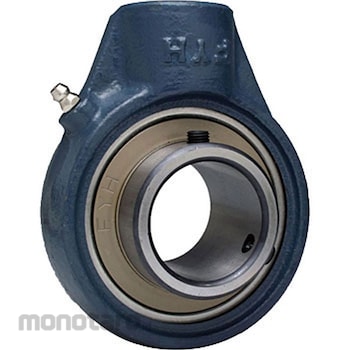

FYH UCHA Hanger Type (Cylindrical Hole)
#Grup produk P102821459
Spesifikasi
| Shaft Diameter d | Ø 30mm |
|---|---|
| Dimension H2 | 19mm |
| Compatible Grease Nipple | 201 to 210: A-1 / 4-28 UNF, 211 to 215: A-PT 1/8 |
| Type | (Bearing housing) standard product, (bearing) triple sealed product |
| Dimension H1 | 103mm |
| Shape | Hanger type |
| Dimension B | 38.1mm |
| Form | UCHA-L3 |
| Dimension L | 78mm |
| Dimension N | PF3/4mm |
| Dimension A (mm) | 40 |
| Dimensions h | 64mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
It is a bearing unit combining a bearing and a bearing box provided with pipe parallel threads on one side. The bearing box is designed to be compact, and it is suspended with a steel pipe or the like and attached to the machine body.Ulasan Produk
