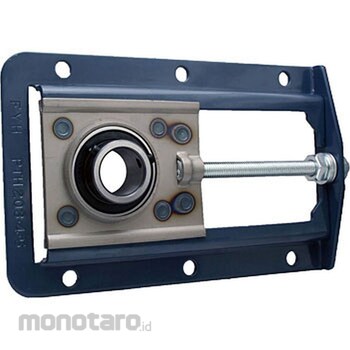

FYH SBPTH Steel Plate Made Frame Take-Up Type (Cylindrical Hole)
#Grup produk P102821389
Spesifikasi
| Type | (Bearing box) Steel plate, (bearing) Standard item |
|---|---|
| Dimension J2 | 25mm |
| Dimension J | 75mm (+/- 0.7) |
| Form | SBPTH |
| Dimension L | 210mm |
| Dimension L1 | 220mm |
| Shape | Steel plate with frame take-up type |
| Shaft Diameter d | Ø 20mm |
| Dimension N | 9mm |
| Dimension J1 | 117mm (+/- 0.7) |
| Dimension A (mm) | 27 |
| Dimensions h | 135mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
It is a unit product combining steel plate made-up type unit, steel plate frame, adjusting bolt and others. By moving the bearing box in the radial direction by the adjustment bolt attached to the unit, the support position of the shaft centerUlasan Produk
