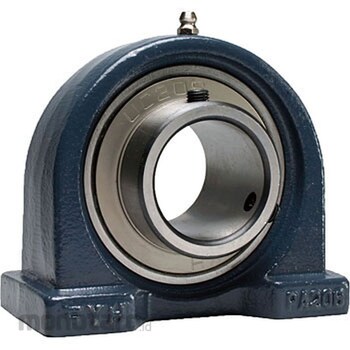

FYH UCPA Narrow Width Pillow Type (Cylindrical Hole)
#Grup produk P102820663
Spesifikasi
| Dimension L1 | 36mm |
|---|---|
| Compatible Grease Nipple | A-1/4-28UNF |
| Dimension L | 94mm |
| Shape | Narrow pillow type |
| Dimension J | 66mm (+/- 0.5) |
| Shaft Diameter d | Ø 30mm |
| Dimension H3 | 18mm |
| Dimension H2 | 84mm |
| Dimension A (mm) | 50 |
| Dimensions h | 42.9mm (+/- 0.15)mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
It is a pillow type unit designed to reduce installation space.Mounting on the machine body is performed by using two screw holes provided on the bottom of the mounting box installation.Ulasan Produk
