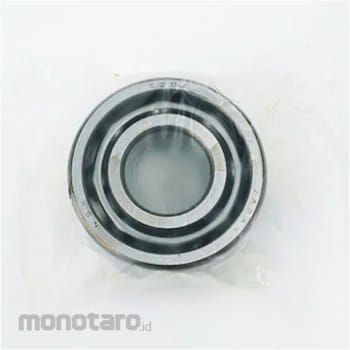

NSK Double Row Angular Contact Ball Bearings 5200 Series (Open Type)
#Grup produk P102809749
Spesifikasi
| Inner Diameter D | Φ 10mm |
|---|---|
| Outer Diameter D | Φ 30mm |
| Width B | 14.3mm |
| Material (main body) | High Carbon Chromium Bearing Steel |
| Action point distance a 0 | 14.5mm |
| Allowable speed Grease lubrication | 17000min-1 (rpm) |
| Allowable speed Oil lubrication | 22000min-1(rpm) |
| Basic load rating Cor | 3900N |
| Rolling Body Material | High Carbon Chromium Bearing Steel |
| Dimensions r | (Minimum) 0.6mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The double row angular contact ball bearing is a bearing having a structure in which the outer race of the two single row angular ball bearings is aligned and the inner race and the outer race are united. It therefore has thrust load capability in both directions.
