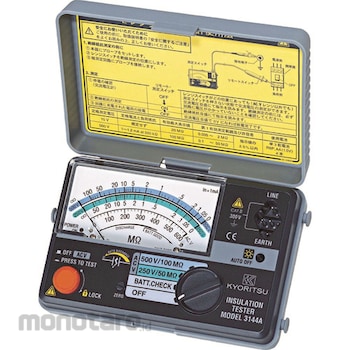

KYORITSU Analog Insulation Resistance Tester
#Grup produk P102753875
Kondisi Barang:
Authorized Partner
Spesifikasi
| AC Voltage (V) | 0 to 600 |
|---|---|
| Accuracy | (Insulation resistance tester) (Standard temperature) Within ± 5% of the indicated value, within ± 10% of the indicated value, (0 and ˆž scale) 0.7% or less of the scale length, (Voltmeter) ± 5% of the maximum scale value |
| Applicable Standard | JIS C 1302: 2014 compliant, JIS C 1010-1 CAT III 600V |
| Circuit Voltage Used | (Open) 1.2 times or less of the rated measurement voltage |
| DC Voltage (V) | 0 to 600 |
| Dimensions WxHxD (mm) | 156x97x46 |
| Effective Maximum Display Value (MΩ) | 200 |
| Frequency (Hz) | 45 to 65 |
| Included Accessories | Measuring probe with remote switch (7260), crocodile cord set (7261), carrying case (9173), tip metal fittings / long (8017A), shoulder belt (9121), AA batteries x 4, instruction manual |
| Length (mm) | 46 |
| Measurement Voltage (V) | 500 |
| Measuring Range | (Insulation resistance tester) (1st effective) 0.1-100MΩ, (2nd effective) 0.5-0.1MΩ / 100-200MΩ, (Voltmeter) AC 0-600V (45-65Hz) / DC0-600V |
| Outer Dimensions (mm) | 97x156x46 |
| Power Supply | 4 AA batteries LR6 / R6 (1.5V) |
| Protection Class | IP40 |
| Rated Current (mA) | 1 to 1.2 (a)1MΩ |
| RoHS Directive | Correspondence (Corresponding to 10 Substances) |
| Short Circuit Current (mA) | Within 1.5 |
| Suitable Battery | 4 AA batteries LR6 / R6 (1.5V) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
-A palm-sized small lightweight 2 range megger.
-The graduation of the scale is easy to see and is color coded by the range of voltage.
-A measuring probe with a remote switch that allows switch operation at hand is standard equipment.
-CE standard product.
-
