Application :
These magnetic bases are widely used as measuring tool holders when measuring dimensions of machined
workpieces (detecting errors and deviation) using a dial indicator on machine tools or iron surface plate for
measurement by comparison.

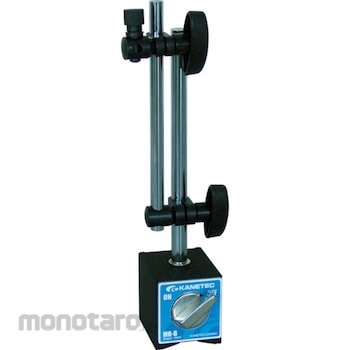

KANETEC Magnetic Base
#Grup produk P102742806
Spesifikasi
| Adhesion Strength (N) | 800 |
|---|---|
| Magnet Dimensions (mm) | 50x58.5x55 |
| Main Pole Diameter (mm/inch) | 12 / 0.47 |
| Main Pole Length (mm/inch) | 176 / 6.92 |
| Sub Pole Diameter (mm/inch) | 10 (0.39) |
| Sub Pole Length (mm/inch) | 165 (6.49) |
| Main Pole Mounting Thread (mm/inch) | M8 (0.31) x 1.25 (0.04) |
| Clamp Hole Diameter (mm/inch) | 6.6 (0.26) / 8.1 (0.31) |
| Indicator Clamp Screw (mm/inch) | M6 (0.23) |
| Mountable Stem Diameter (mm/inch) | 6 (0.23), 8 (031) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- A wide variety of models, small to large, and with diversified additional functions, are available to suitconditions of measuring places.
- A powerful magnet and strong clamping force ensure consistent, highly accurate measurement.
- Model MB-Z magnetic bases are equipped with upper components having the highest rigidity in our
Magnetic Base Series, which minimizes errors in repeated measurement and precision measurement.
Displacement at a force of 0.5 kg … MB-Z15: 3 μm or less (1/8 or less of conventional base) MB-Z20: 8 μm or less (1/3 or less of conventional base).
