-A nozzle type ionizer with a super compact slim body.
-Standardly equipped with a rotating corner nozzle that can change the blowing direction by turning the nozzle and it can be installed anywhere.
-Optimal to install in a narrow place.
-Equipped with a 6 electrode terminal for cross wiring of DC24V and taking out high voltage error signal.
-Prevention of liquid staining during replenishment tasks, attachment to chuck boards, and measures against defective driving of the parts feeder.
-Standard nozzle (attached)

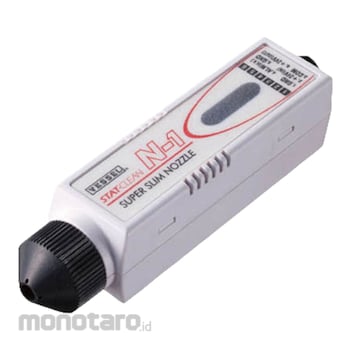

Vessel Super Slim Nozzle
#Grup produk P102695696
Spesifikasi
| Power | DC 24 ±5% ripple (P-P)10% or lessV |
|---|---|
| Electricity consumption | 100mA |
| Working Air Pressure | 0.1 to 0.6MPa |
| Working Environment Temperature | 5 to 40°C |
| Generated Ozone Volume | 0.05ppm or less (at 0.2MPa, measurement distance 50mm) |
| Ion Balance | ±10V (standard nozzle mounted, at 0.3MPa, distance 150mm) |
| Static Elimination Method | Piezoelectric High-Frequency Alternating Current Corona Discharge Type |
| Width x Depth x Height | 109.6x27.5x28mm |
| Working Ambient Humidity | 35 to 65%RH (but free of condensation-freezing) |
