-Adopted a high contact pressure/double-sided contact.
-Applicable to a wide range of panels.
-For relay connection.
-2.5mm pitch for wire to wire connection.

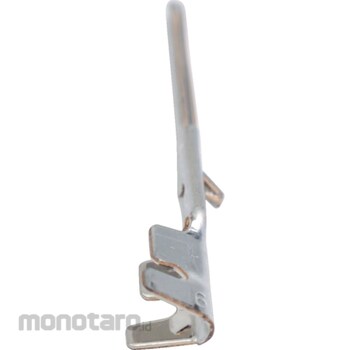

JST SM Connector Pin Contact
#Grup produk P102637708
Spesifikasi
| Applicable Cable Range | 0.08 to 0.33 (mm²), AWG#28 to #22 |
|---|---|
| Wire Coating Outer Diameter | 1.2 to 1.8mm |
| Rated Current | MAx3A |
| Rated Voltage | Max250V |
| Insulation Resistance | 500MΩ or more |
| Voltage resistance | AC1500V/1 Min. |
| Material | Phosphor Bronze, Tin Plating (reflow processing) |
| Working Temperature Range | -25 to +85°C (includes temperature increase value) |
