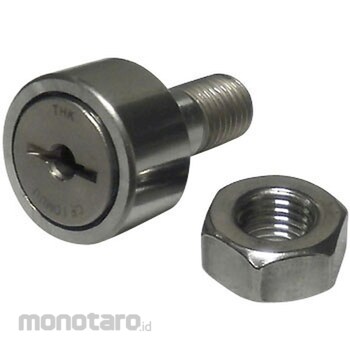

THK Cam Follower CF Type Sealed Spherical Outer Ring
#Grup produk P102569629
Spesifikasi
| Seal | With Seal |
|---|---|
| Shape | Spherical outer ring |
| Material | Carbon steel |
| Basic load rating C (kN) | 5.33 |
| Basic load rating Co (kN) | 6.78 |
| Dimension B (mm) | 13 |
| Dimension B1 (mm) | 12 |
| Dimension F (mm) | 15 |
| Dimension L (mm) | 12 |
| Dimension R (mm) | 0.3 |
| Dimension S (mm) | M10x1.25 |
| Dimension d1 (Φmm) | 4 |
| Dimensions d (mm) | Φ22 |
| Limit Speed (rpm) | 17000 |
| Mass (g) | 45 |
| Maximum allowable load (kN) | 5.81 |
| Outer Diameter (φmm) | 22 |
| Truck Load Capacity (KN) | 1.67 |
| Width (mm) | 12 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
`
Warning
* Dimension d1 * , Grease lubrication hole is only processed to the head.Ulasan Produk
