Shape steel (H type, I type, C type, L shape, T shape steel etc.) Horizontal hanger clamp exclusively for construction. Workability is good because it is almost horizontal when hanging shape steel. It is unnecessary to attach the clamp by the function of the spring and to support it by wearing it. Also the clamp does not come off even under no load condition. HLC type is a large diameter shackle type easy to handle. Main body and parts are robust and outstanding durability by the highest heat treatment processing by die forging of special alloy steel. It is small, lightweight, easy to use and safe because it is dynamically ideal design. By the function of the pad on the arc, the stable clamp state is maintained.
Useable:

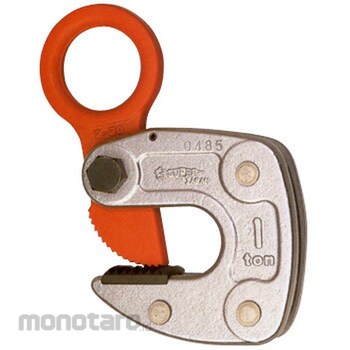

SUPER TOOL Shape Clamp
#Grup produk P102553363
Spesifikasi
| Material | Special alloy steel |
|---|---|
| Type | Hanging clamp |
| Clamp Range | 2 to 20mm |
| H (maximum) | 188mm |
| Dimension L1 | 123mm |
| Dimension D1 | 46mm |
| Dimension D2 | 72mm |
| Dimension L | Min. 152mm |
| Dimension L2 | 75mm |
| Dimension T | 52mm |
| Dimension T1 | 32mm |
| Dimension T2 | 14mm |
| Dimensions h1 | 118mm |
| Dimensions h2 | 60mm |
| Standard Working Load | 1.0t |
| TRUSCO Number | 104-2491 |
