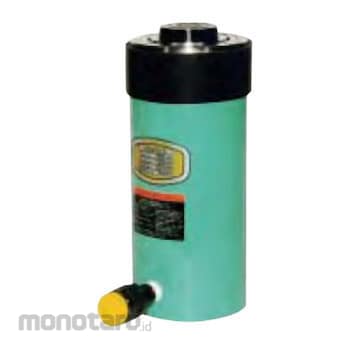

Osaka Jack Power Jack E Series (Single Acting Type) Spring Return Jack
#Grup produk P102553202
Spesifikasi
| Port Screw m | NPT3/8 |
|---|---|
| Rod screw diameter b | M36x2mm |
| Color Screw Diameter a | M 102x2mm |
| Attached Couplers | B-6JG |
| Base Screw Diameter c | 4-M10x15Lmm |
| Color Screw Length j | 45mm |
| Cylinder Inner Diameter d | 75mm |
| Cylinder Outer Diameter D | 102mm |
| Dimensions s | 75mm |
| Height to Port L | 25mm |
| Lifting Power | 300kN (30f) |
| Minimum Height H | 245mm |
| Pressure Area | 44.18cm² |
| Reach Capability | 125mm |
| Required Oil Volume | 552ml |
| Rod Diameter f | 65mm |
| Rod screw length k | 25mm |
| Saddle Diameter o | 50mm |
| Stroke | 125mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Piston sliding part is made of copper alloy and piston rod is made of hard chrome plating. Cylinder and piston are powerful materials heat-treated with SCM 435.
