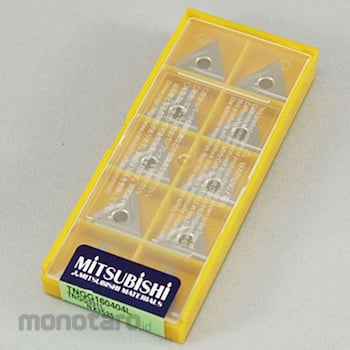

Mitsubishi Materials Chip TNGG
#Grup produk P102550056
Spesifikasi
| Holes With/Without | There |
|---|---|
| Work Material | P (steel)/M (stainless steel)/K (cast iron) |
| Material | NX2525 |
| Type | negative |
| Cutting Range | Medium cutting |
| Shape | Equilateral triangle 60° |
| Corner Height Tolerance | ± 0.025mm |
| Corner Radius | 0.4mm |
| Cutting Blade Length | 16.5mm |
| Dimension Re | 0.4mm |
| Dimension S1 | 4.76mm |
| Hole Shape | Cylindrical hole |
| Inscribed Circle Diameter | 9.525φ mm |
| Inscribed Circle Tolerance | ± 0.025mm |
| Relief Angle | 0° |
| TRUSCO Number | 118-7503 |
| Thickness | 4.76mm |
| Thickness Tolerance | ± 0.13mm |
| Tip Breaker | Both sides |
