Mitsubishi Materials Chip TPGX
#Grup produk P102550047

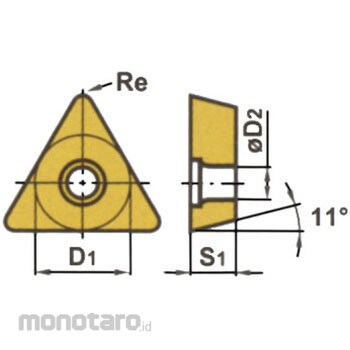

Spesifikasi
| Holes With/Without | There |
|---|---|
| Type | Positive |
| Breaker | None |
| Work Material | K (cast iron)/N (nonferrous metal) |
| Material | HTi10 |
| Shape | Equilateral triangle 60° |
| Corner Height Tolerance | ± 0.025mm |
| Corner Radius | 0.8mm |
| Corner Radius Re | 0.8mm |
| Cutting Blade Length | 11mm |
| Dimension S1 | 3.18mm |
| Dimention D1 | 6.35φmm |
| Dimention D2 | 3.5φ mm |
| Inscribed Circle Diameter | 6.35φ mm |
| Inscribed Circle Tolerance | ± 0.025mm |
| Relief Angle | 11° |
| TRUSCO Number | 119-4313 |
| Thickness | 3.18mm |
| Thickness Tolerance | ± 0.13mm |
