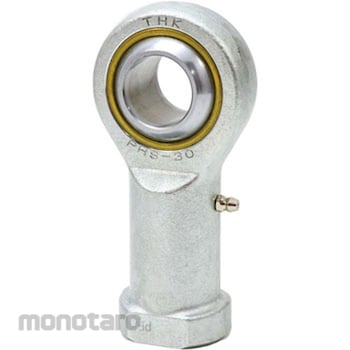

THK Rod End PHS Type (Right Screw Type)
#Grup produk P102543630
Spesifikasi
| Type | With female thread type |
|---|---|
| Dimension S | M30x2mm |
| JIS Class | JIS class 2 |
| B1 (Width) | 37mm |
| Dimension B | 25mm |
| Dimension D (mm) | 30 |
| Dimension L | 145mm |
| Dimension L1 | 110mm |
| Dimension L2 | 15mm |
| Dimension S1 | M30x2mm |
| Dimension W | 41mm |
| Dimensions D(ɸmm) | 70mm |
| Dimensions c | 0.8mm |
| Dimensions d1 | 34.8mm |
| Dimention D1 | 40φmm |
| Dimention D2 | 50φ mm |
| Material | Holder: S35C (colored chromate treatment). Spherical inner ring: SUJ 2 HRC 58 or more (hard chromium plating treatment). Bush: special copper alloy |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
It has high rigidity and excellent wear resistance and corrosion resistance because it is a structure that inserts a familiar special alloy between a colored chromate-treated steel holder and a hard chromium plated spherical inner ring. You can grease from the grease nipple to the appropriate sliding surface.
