THK Eccentric Cam Follower CFH-AB Type (Cylindrical Outer Ring with Cage with Seal)
#Grup produk P102543339

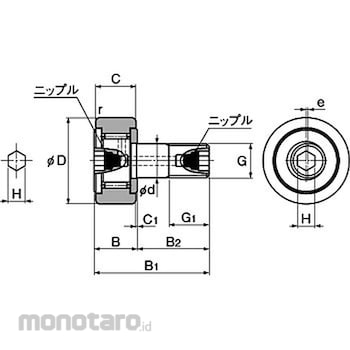

Spesifikasi
| Dimension G | M18x1.5 |
|---|---|
| Material | Carbon steel |
| Limit Rotation Speed | 8500min⁻¹(rpm) |
| Dimension B1 | 58mm |
| Dimension B | 21.5mm |
| Dimension B2 | 36.5mm |
| Dimension C1 | 0.8mm |
| Dimension D (mm) | 40φ |
| Dimension E | 0.6mm |
| Dimension F | 26φ mm |
| Dimension G1 | 19mm |
| Dimensions c | 20mm |
| Dimensions h1 | 6mm |
| Dimensions h2 | 6mm |
| Dimensions r | 1mm |
| Maximum Allowable Load | 26.1kN |
| Standard Load Rating C | 14.7kN |
| Standard Load Rating Co | 25.2kN |
| Truck Load Capacity | 14.4kN |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Conventional products had to manufacture jigs and install filling plugs and grease nipples, but with the cam follower CF-AB type with grease nipple, since the grease nipple is attached to both sides, it can be used immediately after taking out from the box I will. Also, using a hexagonal wrench, it can be fixed from either the head side or the screw side of the stud, and lubrication from both directions is also possible. Since installation and maintenance can be done without worrying about installation space, work efficiency improves.
