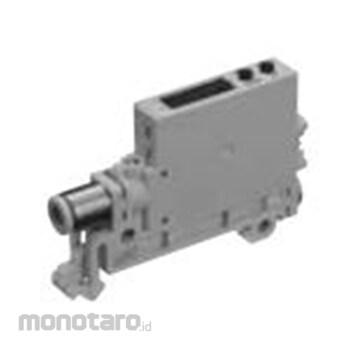

PISCO Pressure Sensor with LED Indication 8mm Width
#Grup produk P102538531
Sebelum PPN:
Rp2.999.900 - Rp3.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Operating Temperature Range | 0 to 50°C (without freezing) |
|---|---|
| Protection Structure | Equivalent to IEC standard IP 40 |
| Display | Pressure display element: 2 digit with sign, 7 segment red LED (character height: 4.5mm) Number of impressions: 4 times/sec Monitoring function: pressure over display, flashing display Special function 1: Enable/disable selection by button operati |
| Fluid | Air (non-corrosive) |
| Operating Humidity Range | 35 to 85% RH (without condensation) |
| Detection Method | Diffusion semiconductor pressure switch |
| Electric Supply Source | DC 12 to 24V ± 10% (including ripple PP) |
| Impact Resistance | 150m/s² |
| Storage temperature range | -20 to 70°C (atmospheric pressure, humidity 65% RH or less) |
| Switch Output | Number of output points: 2 points output Output method: NPN open collector Switch capacity: DC 30V 80mA or less ResidualVoltage: 1.2V mAx. Or less (NPN, load current 80mA) Output operation: separate mode, window comparate mode Pressure setting r |
| Vibration Resistance | 100m/s² |
