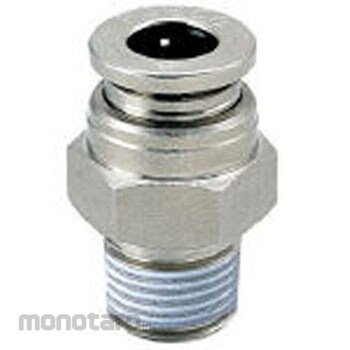

PISCO Tube Fitting Brass Straight Straight without Cover
#Grup produk P102537602
Spesifikasi
| Shape | straight |
|---|---|
| Cover | No cover |
| Type | Spatter resistant Type |
| Operating Temperature Range | 0 to 100°C (without freezing) |
| Maximum Working Pressure | 1MPa |
| Connection Screw Type | R |
| Connection Thread | 1/8 |
| Dimension A (mm) | 8 |
| Dimension B | 20.6mm |
| Dimension L | 16.6mm |
| Dimension P | 9.4mm |
| Dimensions c | 14.5mm |
| Fluid | Air, water (conditioned), heat medium oil (conditioned) |
| Opposite Side H | 10mm |
| Orifice Diameter | 2.5φ mm |
| TRUSCO Number | 442-6509 |
| Tube Outside Diameter | 4φ mm |
| Vacuum Pressure | -100kPa |
