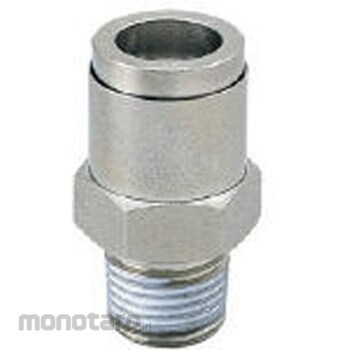

PISCO Tube Fitting Brass with Straight Cover
#Grup produk P102537596
Spesifikasi
| Shape | straight |
|---|---|
| Cover | With cover |
| Type | Spatter resistant Type |
| Operating Temperature Range | 0 to 100°C (without freezing) |
| Maximum Working Pressure | 1MPa |
| Opposite Side H | 10mm |
| Connection Screw Type | R |
| Connection Thread | 1/8 |
| Dimension A (mm) | 8 |
| Dimension B | 23.7mm |
| Dimension C1 | 17.6mm |
| Dimension C2 | 15mm |
| Dimension L | 19.7mm |
| Dimension P | 9.8mm |
| Fluid | Air, water (conditioned), heat medium oil (conditioned) |
| Orifice Diameter | 2.5φ mm |
| TRUSCO Number | 442-6495 |
| Tube Outside Diameter | 4x6φ mm |
| Vacuum Pressure | -100kPa |
