PISCO High Rotary Joint Bush
#Grup produk P102534720
Spesifikasi
| Shape | Bush |
|---|---|
| Type | Rotary type For piping type |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Effective Sectional Area | 50.2mm² |
| Maximum Working Pressure | 1MPa |
| Connection Screw Type | RxRc |
| Connection Thread | 1/2x1/2 |

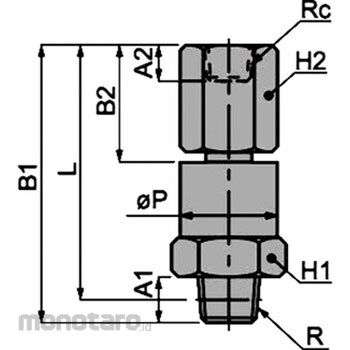

| Dimension A1 | 16.5mm |
| Dimension B1 | 67.1mm |
| Dimension B2 | 28.6mm |
| Dimension L | 58.9mm |
| Dimension P | 23.6mm |
| Fluid | air |
| Opposite Side H1 | 24mm |
| Opposite Side H2 | 24mm |
| Vacuum Pressure | -100kPa |
