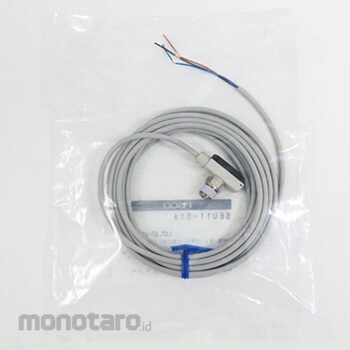

PISCO Compact Pressure Sensor (Analog Output Type) for Positive Pressure
#Grup produk P102533226
Sebelum PPN:
Rp1.399.900 - Rp1.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Protection Structure | Equivalent to IEC standard IP 40 |
|---|---|
| Operating Pressure Range | 0 to 1MPa |
| Output Form | Analog output |
| Analog Output | OutputVoltage/1 to 5V. Zero pointVoltage/1 ± 0.1V.mAximum rated pressure pointVoltage/5 ± 0.1V. Output current/1mAmAx. (Load resistance/5 kω). Linearity/ ± 0.5% F.S.mAx. (At Ta = 25°C) |
| withstanding Pressure | 1.5MPa |
| Display Part | No pressure indication |
| Consumption Electric Current | 20mA or less (24V DC no load) |
| Detection Method | Pressure: Diffusion semiconductor pressure switch |
| Electric Supply Source | DC 10.8 to 30 V (including ripple) |
| Fluid | Air, inert gas |
| Model | Pressure sensor for positive pressure |
| Operating Temperature and Humidity Range | Temperature/0-60°C (no freezing). Humidity/35 to 85% RH (without condensation) |
| Storage temperature range | -20 to 70°C (atmospheric pressure, humidity 60% RH or less) |
