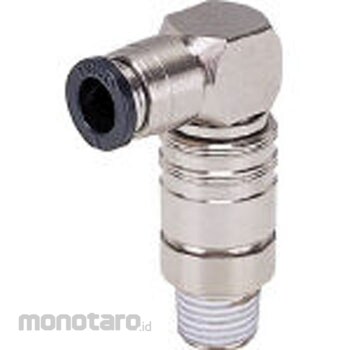

PISCO Mold Temperature Adjustment Fitting Elbow
#Grup produk P102532810
Spesifikasi
| Shape | elbow |
|---|---|
| Type | Mold temperature adjustment type, Standard type Mold temperature adjustment joint (without stop valve) |
| Operating Temperature Range | 0 to 60°C (air), 0 to 99°C (water), 0 to 120°C (heat medium oil) (no freezing) |
| Maximum Working Pressure | 0.9MPa |
| Connection Screw Type | R |
| Connection Thread | 1/8 |
| Dimension A (mm) | 8 |
| Dimension B | 37.9mm |
| Dimension E | 23.9mm |
| Dimension L | 40.9mm |
| Dimension P | 15mm |
| Dimensions c | 18.2mm |
| Fluid | Air, water (fresh water) (conditioned), thermal oil (conditioned) |
| Opposite Side H | 5mm |
| Orifice Diameter | 5.3φ mm |
| Tube Outside Diameter | 8φ mm |
| Vacuum Pressure | -100kPa (air) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
water, when the heat medium oil use, please use the surge pressure at or below the maximum operating pressure. Please be sure to use the insert ring.Ulasan Produk
