One-touch fitting for resistance to corrosion.
. All metal parts SUS316 excellent in corrosion to the material, the sealing portion using fluororubber.
. All parts used are oil-free specification. It conforms to the Food Sanitation Law.
Useable: Connection of the screw and tube

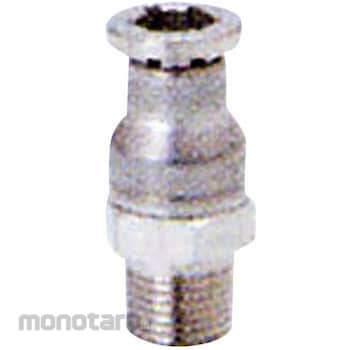

PISCO Stainless Steel SUS316 Fitting Straight
#Grup produk P102532281
Spesifikasi
| Shape | straight |
|---|---|
| Type | Corrosion resistant type |
| Operating Temperature Range | -15 to 120°C (without freezing) |
| Effective Sectional Area | 3mm² |
| Maximum Working Pressure | 1MPa |
| Connection Screw Type | M |
| Connection Thread | M5x0.8 |
| Dimension A (mm) | 3 |
| Dimension B | 24.4mm |
| Dimension L | 21.4mm |
| Dimension P | 9.8mm |
| Dimensions c | 18.4mm |
| Fluid | Air, water (conditioned), others (conditioned) |
| Opposite Side H | 10mm |
| Orifice Diameter | 2φ mm |
| Packing | Normal packaging |
| RoHS Directive | Yes |
| Tube Outside Diameter | 4φ mm |
| Vacuum Pressure | -100kPa |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
chemicals, solvents, regarding the mixed gas, etc., please use on the check that it may fit the specifications are different depending on the operating conditions.Ulasan Produk
