Spesifikasi
Shape | Tightening Universal Elbow |
---|---|
Type | Barb type |
Operating Temperature Range | 0 to 50°C (without freezing) |
Maximum Working Pressure | 1, when using a vacuum tube (UD): 0.4MPa |
Connection Screw Type | M |
Connection Thread | M5x0.8 |
Fluid | air |
Vacuum Pressure | -100kPa |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Description

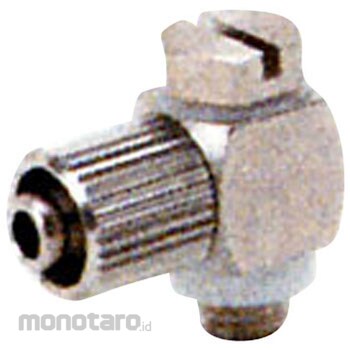

Ultra-compact fitting for general piping. Ideal for piping of the vacuum apparatus by the combination of the vacuum tube. Small equipment, ideal for piping space-saving. Possible tightening of the tube by hand tightening
Useable: Connection of the screw and the tube (type tightening)
Useable: Connection of the screw and the tube (type tightening)
