One-touch fitting built-in pressure reducing valve. Outflow from the joint side is reduced from the screw side to introduce a primary pressure. Easy layout in a compact design
Useable: Connection of the screw and tube

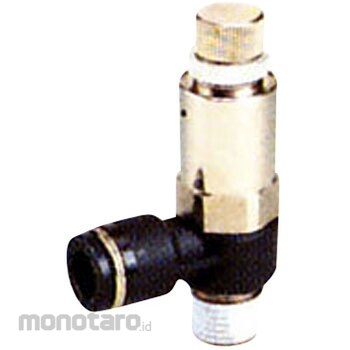

PISCO Regulator Elbow
#Grup produk P102531866
Spesifikasi
| Material | Valve spring, Valve body, lock claw/stainless steel, open ring/polyacetal (POM), tube/polyurethane or nylon, guide ring, metal body, pressure regulating screw, spring retainer, piston/brass, electroless nickel plating, elastic body Sleeve, O ring, |
|---|---|
| Shape | elbow |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Operating Pressure Range | 0 to 0.9MPa |
| Dimension L1 | Max: 56mm, min: 52mm |
| Compatible Tube Outer Diameter D | 8mm |
| Dimension A (mm) | 7.8 |
| Dimension B | Max: 60mmmm, min: 56mm |
| Dimension E | 26.9mm |
| Dimension L2 | 11.7mm |
| Dimension P1 | 14.4φ mm |
| Dimension P2 | 14φ mm |
| Dimension P3 | 14.4φ mm |
| Dimensions c | 18.1mm |
| Display Pressure Range | 0 to 0.8MPa |
| Fluid | air |
| Opposite Side H | 14mm |
| Precision | Gauge ± 5% (full scale) |
| Set Pressure Range | 0.1 to 0.8MPa |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
L1, L2 dimension of the tapered screw type is a reference dimension after tightening the screw.Ulasan Produk
