General pneumatic piping stop valve function built-in one-touch fitting. When removing the tube will stop the air. In conducting a two-stage structure, easy attachment and detachment of the tube
Useable: Connection of the screw and tube

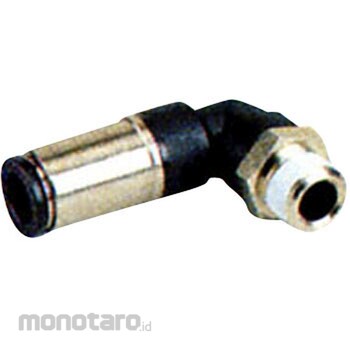

PISCO Stop Fitting Elbow
#Grup produk P102531796
Spesifikasi
| Material | Lock nail/stainless steel. Open ring, Valve body/polyacetal (POM). Tubes/polyurethane or nylon. Guide ring, metal body/brass, electroless nickel plating. Elastic sleeve, O ring/nitrile rubber (NBR). Resin body/polybutylene terephthalate (PBT) |
|---|---|
| Shape | elbow |
| Type | Built-in stop valve type |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Maximum Working Pressure | 0.9MPa |
| Fluid | air |
| RoHS Directive | Yes |
| Vacuum Pressure | -100kPa |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
L size of the tapered screw type is a reference dimension after tightening the screw.Ulasan Produk
