It opens and closes the air pressure input to the device. 2-way valve.
Useable: Connection of the screw and tube

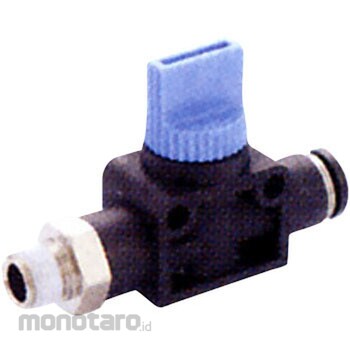

PISCO Hand Valve Straight B 2 Way Valve
#Grup produk P102531653
Spesifikasi
| Material | Lock nail/stainless steel. Open ring, cap lever/polyacetal (POM). Tubes/polyurethane or nylon. Guide ring, metal body, spool/brass (electroless nickel plating). Elastic sleeve, O ring/nitrile rubber (NBR). Resin body/polybutylene terephthalate |
|---|---|
| Shape | Hand Valve straight B 2 way Valve |
| Color | Standard color (Resin Body-Open Ring: Black, Cap Lever: Blue) |
| Operating Temperature Range | 0 to 60°C |
| Valve Specification | Two way valve |
| Fluid | air |
| Operating Pressure Range | 0 to 0.9MPa |
| Compatible Tube Outer Diameter D | 8mm |
| Dimension A (mm) | 8 |
| Dimension B1 | 33.5mm |
| Dimension B2 | 27.7mm |
| Dimension E1 | 17mm |
| Dimension E2 | 40.5nm |
| Dimension F1 | 18mm |
| Dimension F2 | 8mm |
| Dimension L | 57.2mm |
| Dimension P1 | 15φ mm |
| Dimensions c | 18.1mm |
| Effective Sectional Area | 8.9mm² |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
L size is a reference dimension after tightening the screw.Ulasan Produk
