One-touch fitting built-in check valve
. For supplying only air entered from one side, possible to maintain the pressure on the output side
. Vacuum holding, can be used in the pipe at low pressure
Useable: Connection of the screw and tube

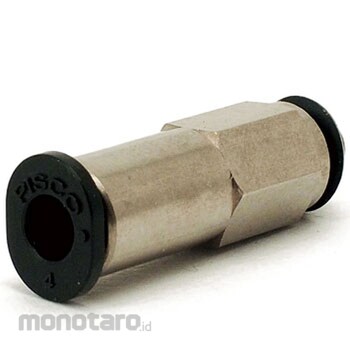

PISCO Check Valve Straight
#Grup produk P102531617
Spesifikasi
| Material | Lock Nail, Spring/Stainless. Open Ring/POM (Polyacetal). Tube/Polyurethane, Nylon. Guide Ring, Metal Body/Brass, Electroless Nickel Plating. Elastic Sleeve, O-ring/NBR (Nitrile Rubber). Valve Body/Aluminium |
|---|---|
| Shape | Check Valve straight |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Operating Pressure Range | 0 to 0.9MPa |
| Appearance | Metal type |
| Fluid | air |
| RoHS Directive | Yes |
| Vacuum Pressure | -100kPa |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
L size of the tapered screw type is a reference dimension after tightening the screw.Ulasan Produk
