One-touch fitting built-in check valve
. For supplying only air entered from one side, possible to maintain the pressure on the output side
. Vacuum holding, can be used in the pipe at low pressure
Useable: Connection of the tube and the tube (same diameter)

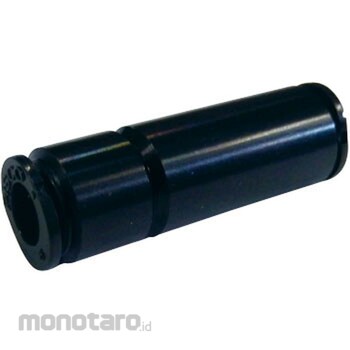

PISCO Check Valve Union Straight
#Grup produk P102531608
Spesifikasi
| Material | (Open ring) POM, (guide ring) brass, electroless nickel plating, (lock claw) stainless steel, (elastic sleeve) NBR |
|---|---|
| Shape | Check Valve Union Straight |
| Operating Temperature Range | 0 to 60°C |
| Operating Pressure Range | 0 to 0.9MPa |
| Body Material | (Metal) brass, electroless nickel plating |
| Fluid | air |
| Material (O-Rings) | NBR |
| Material (Spring) | stainlessSpring |
| Materials (Valve) | aluminum |
| RoHS Directive | Yes |
| Vacuum Pressure | -100kPa |
