General pneumatic piping speed rotation part for one-touch joint. Two use the bearings in the rotating part. Fast oscillating member moving, ideal for high-speed rotation portion
Useable: Connection of the screw and the screw

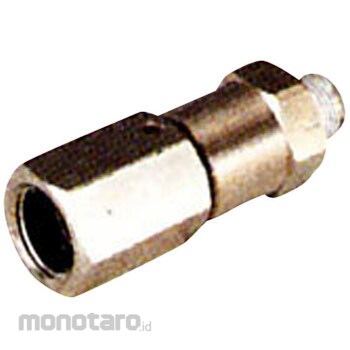

PISCO High Rotary Joint Bush
#Grup produk P102531565
Spesifikasi
| Shape | Bush |
|---|---|
| Type | Rotary type For piping type |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Effective Sectional Area | 11mm² |
| Maximum Working Pressure | 1MPa |
| Allowable Number of Rotations | 1200min⁻¹ r.p.m |
| Connection Thread | 1/8x1/4 |
| Dimension A1 | 13.5mm |
| Dimension B1 | 51.2mm |
| Dimension B2 | 23.2mm |
| Dimension L | 47.2mm |
| Dimension P | 16.6mm |
| Fluid | air |
| Opposite Side H1 | 17mm |
| Opposite Side H2 | 17mm |
| RoHS Directive | Yes |
| Torque | 150gcm |
| Vacuum Pressure | -100kPa |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
L size is a reference dimension after tightening the screw.Ulasan Produk
