General pneumatic piping speed rotation part for one-touch joint. Two use the bearings in the rotating part. Fast oscillating member moving, ideal for high-speed rotation portion
Useable: Connection of the screw and tube

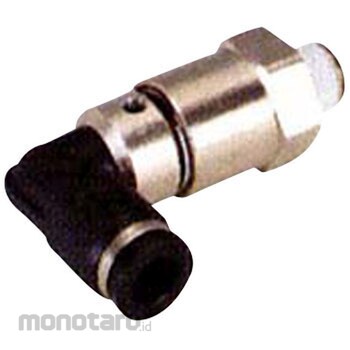

PISCO High Rotary Joint Elbow
#Grup produk P102531556
Spesifikasi
| Material | Metal body, guide ring/brass+nickel plating. Resin body/polybutylene terephthalate (PBT). Open ring/polyacetal (POM). Lock nail, shaft/stainless. Tube/polyurethane, nylon, etc. Elastic sleeve/nitrile rubber (NBR). O ring/fluoro rubber |
|---|---|
| Shape | elbow |
| Type | Rotary type For piping type |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Effective Sectional Area | 4.5mm² |
| Maximum Working Pressure | 1MPa |
| Allowable Number of Rotations | 1500min⁻¹ r.p.m |
| Connection Thread | M6x1 |
| Dimension A (mm) | 4 |
| Dimension B1 | 34.7mm |
| Dimension B2 | 13.2mm |
| Dimension E | 19.7mm |
| Dimension L | 35.7mm |
| Dimension P1 | 10φ mm |
| Dimension P2 | 11.6φ mm |
| Dimensions c | 14.9mm |
| Fluid | air |
| Torque | (Idle rotation) 150gcm |
| Tube Outside Diameter | 4φ mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
L size of the tapered screw type is a reference dimension after tightening the screw.Ulasan Produk
