Swinging portion of the general pneumatic pipe, one-touch fitting for rotation unit. Use the bearing to the rotating part. Optimum oscillating member, the rotating part
Useable: Connection of the screw and tube

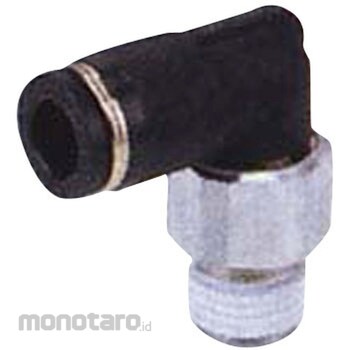

PISCO Rotary Joint Elbow (Inch Size)
#Grup produk P102531547
Spesifikasi
| Material | Metal body/Brass+Chrome plating. Guide ring/brass+nickel plating. Resin body/polybutylene terephthalate (PBT). Open ring/polyacetal (POM). Lock nail/stainless steel. Tube/polyurethane, nylon, etc. Elastic sleeve/nitrile rubber (NBR). O r |
|---|---|
| Shape | elbow |
| Type | Rotary type For piping type |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Fluid | air |
| Maximum Working Pressure | 1MPa |
| RoHS Directive | Yes |
| Vacuum Pressure | -100kPa |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
L size of the tapered screw type is a reference dimension after tightening the screw.Ulasan Produk
