Be used for general air pressure piping, is the most standard one-touch fittings. Large selection of models, correspond to any air pressure piping.
. After installation, you can change the take-off angle of the tube.
. (Limited to the combination products of the connection port shape/screw and push-in joint.) Sealing material is Yes in advance application. Therefore, the sealing tape is not required.
Useable: Connection of the screw and tube

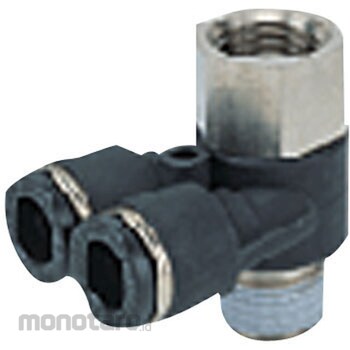

PISCO Female Branchay
#Grup produk P102531361
Spesifikasi
| Shape | Female branchay |
|---|---|
| Color | Open Ring/Resin Body: Black |
| Type | Standard type |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Effective Sectional Area | 38.7mm² |
| Dimension L1 | 44.9mm |
| Connection Thread | 3/8 |
| Dimension A1 | 12mm |
| Dimension B | 51.2mm |
| Dimension D (mm) | 4.2φ |
| Dimension E | 37.4mm |
| Dimension F | 17mm |
| Dimension J | 20mm |
| Dimension L2 | 17.4mm |
| Dimensions c | 23.4mm |
| Fluid | Air, water (conditioned) |
| Maximum Working Pressure | 1MPa |
| Orifice Diameter | 9.3φ mm |
| Tube Outside Diameter | 12φ mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
use fluid is the time of water, please use the surge pressure at or below the maximum operating pressure. General tap water is available. Please be sure to attach the insert ring.Ulasan Produk
