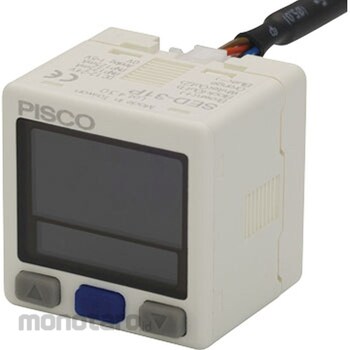

PISCO Compact Pressure Sensor Display
#Grup produk P102530706
Spesifikasi
| Protection Structure | Equivalent to IEC standard IP 40 |
|---|---|
| Display | Number of impressions: 4 times/s Responsiveness:Variable by digital filter About 5, 25, 250, 2500m , sec Display accuracy: ± 1% F. S. Temperature characteristics: ± 3% F.S. (0 to 50°., reference temperature 25°.) --- Blinking indicati |
| Analog Output | OutputVoltage: 1 to 5V. Output current: 1mA (load resistance: 5 kω min.) |
| Consumption Electric Current | 50mA max. (SupplyVoltage: DC 10 BV, 2 point switch output ON) |
| Input Signal | Voltage: 1 ± 0.1 to 5 ± 0.1V |
| Storage temperature range | -20 to 70°C (atmospheric pressure, humidity 60% RH or less) |
| Operating Temperature and Humidity Range | Temperature: 0 to 50°s Celsius (no freezing). Humidity: 35 to 85% RH (without condensation) |
| Electric Supply Source | DC 10.8 to 30 V |
| Switch Output | Number of output points: 2 points output (SW1, SW2) Output method: NPN open collector Switch capacity: DC 30V 100mAmAx. ResidualVoltage: 1.2VmAx. (Load current: 100mA) Pressure setting method: by panel switch operation. Pressure setting range: |
