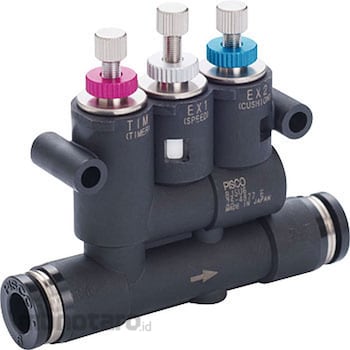

PISCO Speed Controller with Cushion Function
#Grup produk P102530690
Spesifikasi
| Shape | Union straight |
|---|---|
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Operating Pressure Range | 0.2 to 1.0MPa |
| Effective Sectional Area | (IN->OUT) 4.5, (OUT->Ex 1) 2.0, (OUT->Ex 2) 2.0mm² |
| Dimensions c | 17mm |
| Dimension T | 13mm |
| Compatible Cylinder Tube Inner Diameter | Maximum / 25mm |
| Compatible Tube Outer Diameter D | 6mm |
| Dimension B1 | (Maximum) 45.7mm, (Minimum) 42mm |
| Dimension B2 | (Maximum) 44.7mm, (Minimum) 40.8mm |
| Dimension B3 | 58.5mm |
| Dimension F1 | 38mm |
| Dimension F2 | 9.5mm |
| Dimension F3 | 22.7mm |
| Dimension P1 | 12.5φ mm |
| Dimension P2 | 12.5φ mm |
| Dimension P3 | 12.5φ mm |
| Fluid | air |
| TRUSCO Number | 496-4756 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Because it allows leakage, please do not use in usage where leakage amount is zero.- While the air in the cylinder remains at the time of cushioning, since back pressure will be applied, cylinder thrust will decrease, so please be careful.
- Air leakage around the cylinder may affect speed setting.
- Please be careful not to block the exhaust port during operation.
