Be used for general air pressure piping, it is a compact one-touch fittings. It has been volume ratio of 40% smaller than that of the standard. Large selection of models, correspond to any air pressure piping. After installation, you can change the take-off angle of the tube. (Limited to the combination products of the connection port shape/screw and push-in joint.) Sealing material is Yes in advance application. Therefore, the sealing tape is not required.
Useable: Connection of the tube and the tube (Difference diameter)

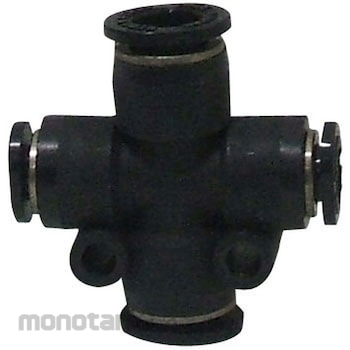

PISCO Mini Type Cloth B
#Grup produk P102530627
Spesifikasi
| Material | Metal body, guide ring/brass+nickel plating. Resin body/polybutylene terephthalate (PBT). Open ring/polyacetal (POM). Lock nail/stainless steel. Tube/polyurethane, nylon, etc. Elastic sleeve, O ring/nitrile rubber (NBR) |
|---|---|
| Shape | Crossbi |
| Color | Open Ring/Resin Body: Black |
| Type | Mini type |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Effective Sectional Area | 5.3mm² |
| Maximum Working Pressure | 1MPa |
| Dimension B1 | 29.1mm |
| Dimension B2 | 29.9mm |
| Dimension E1 | 14.55mm |
| Dimension E2 | 14.95nm |
| Dimension F1 | 13.2mm |
| Dimension F2 | 6.6mm |
| Dimension P | 10.5mm |
| Dimensions c | 11.6mm |
| Fluid | air |
| RoHS Directive | Yes |
| Vacuum Pressure | -100kPa |
