Be used for general air pressure piping, it is a compact one-touch fittings. It has been volume ratio of 40% smaller than that of the standard.
. Large selection of models, correspond to any air pressure piping. After installation, you can change the take-off angle of the tube.
. (Limited to the combination products of the connection port shape/screw and push-in joint.) Sealing material is Yes in advance application. Therefore, the sealing tape is not required.
Useable: Connection of the tube and the tube (Difference diameter)

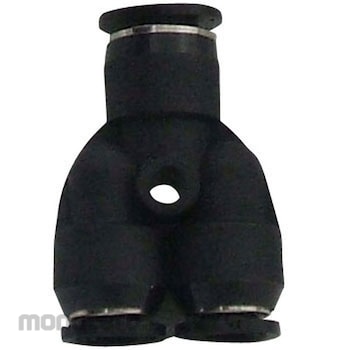

PISCO Mini Type Different Diameter Union Wye
#Grup produk P102530575
Spesifikasi
| Material | Metal body, guide ring/brass+nickel plating. Resin body/polybutylene terephthalate (PBT). Open ring/polyacetal (POM). Lock nail/stainless steel. Tube/polyurethane, nylon, etc. Elastic sleeve, O ring/nitrile rubber (NBR) |
|---|---|
| Shape | Different diameter union wye |
| Color | Open Ring/Resin Body: Black |
| Type | Mini type |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Dimension B | 30.6mm |
| Dimension C1 | 11.6mm |
| Dimension C2 | 11mm |
| Dimension F | 13.6mm |
| Dimension J | 10.5mm |
| Dimension P | 10.5mm |
| Fluid | air |
| Maximum Working Pressure | 1MPa |
| Open Ring Dimension D 2 | 9.8x7.8mm |
| Open Ring Dimension D1 | 11.8x9.8mm |
| RoHS Directive | Yes |
| Vacuum Pressure | -100kPa |
